Welded Mesh Machine

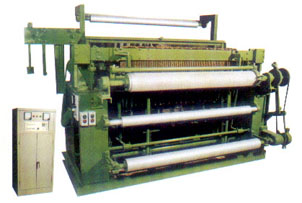

ABD4T Type Electric Welding Net Machine

Size of mesh (mm) 6.35-12.7 (1/4"-1/2")
Width (mm) 914.4-1219.2(12"-48")
Diameter of wire (mm) dia.0.45-dia.1.07 (BWG25-BWG19)
Biggest rolled net size (m) 120m (400')
Welding speed (mesh/minute) 75 (radia)
Power 380/220V
50-60HZ
50KWA x 4
Outside size measurement (mm) 2350 x 1820 x 1700

Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of wire dia.0.45mm, 1.07mm, mesh 1/4" to 1/2".

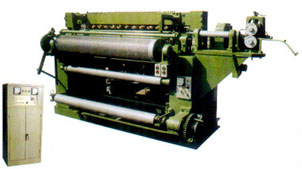

ABD6T Type Electric Welding Net Machine

Size of mesh (mm) 6.35-12.7 (1/4"-1/2")
Width (mm) 1219.2-1828.8(48"-60")
Diameter of wire (mm) dia.0.74-dia.1.07 (BWG22-BWG19)
Biggest rolled net size (m) 120m (400')
Welding speed (mesh/minute) 48 (radia)
Power 380/220V
50-60HZ
50KWA x 6
Outside size measurement (mm) 3050 x 1900 x 1750
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2".

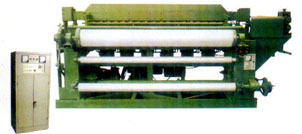

ABK4 Type Electric Welding Net Machine

Size of mesh (mm) 12.7-101.6 (1/2"-4")
Width (mm) 914.4-1219.2(12"-48")
Diameter of wire (mm) dia.0.63-dia.2(BWG25-BWG19)
Biggest rolled net size (m) 120m (400')
Welding speed (mesh/minute) 65 (radia)
Power 380/220V
50-60HZ
50KWA x 4
Outside size measurement (mm) 2600 x 1700 x 1350
Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4".

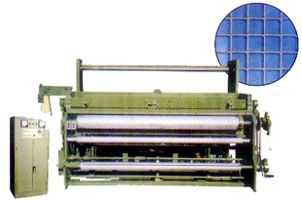

ABK6T Type Electric Welding Net Machine

Size of mesh (mm) 25.4-152.4 (1"-6")
Width (mm) 1219.2 1524 1828.8(48" 60" 72")
Diameter of wire (mm) dia.1.07-dia.2 (BWG19-BWG14)
Biggest rolled net size (m) 91.4m (300')
Welding speed (mesh/minute) 45 (radia)
Power 380/220V
50-60HZ
50KWA x 6
Outside size measurement (mm) 3350 x 1800 x 1400
Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter.
