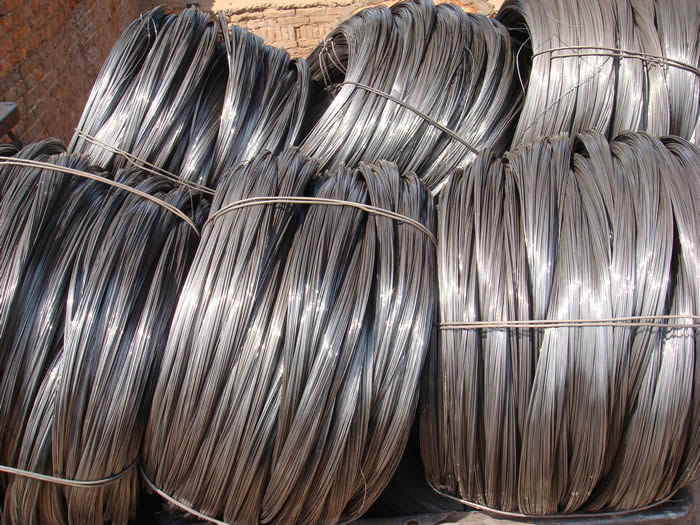

Galvanised Steel Wire
Galvanised Steel (Low Carbon) Wire Brief Introduction
Wire gauge: 0.7mm - 4.06mm
Galvanised wire zinc coat: 20g/m2 - 300g/m2
Tensile strengh:340--1180 N/mm2
Surface treatment of galvanised steel wire: Electro/hot dipped galvanised coating
Advantage: Good toughness and elasticity
Application of galvanised wire:
Construction binding, wire mesh, expressway fencing, chain link fence , handicrafts and brad nails.
Production process:
Steel rod - Drawing modeing - Pickling derusting - Heat diping - Chilling - Finished products
| Gauge | SWG in mm | BWG in mm | metric mm | Common weight/coil |
| 8 # | 4.06 | 4.19 | 4.00 | 50-100kgs |
| 10# | 3.25 | 3.40 | 3.50 | 50-100kgs |
| 12# | 2.64 | 2.77 | 2.80 | 50-100kgs |
| 14# | 2.03 | 2.11 | — | 50-100kgs |
| 16# | 1.63 | 1.65 | 1.65 | 50-100kgs |
| 18# | 1.22 | 1.25 | 1.20 | 5-25kgs |
| 20# | 0.91 | 0.89 | 0.90 | 5-25kgs |
| 21# | 0.81 | 0.813 | 0.80 | 5-25kgs |
| 22# | 0.71 | 0.711 | 0.70 | 5-25kgs |
